| Επωνυμία: | LC |
| Αριθμός Μοντέλου: | SBRS- DZ |
| Ελάχιστη Ποσότητα Παραγγελίας: | 100 |
| τιμή: | R$2.58 |
![]()

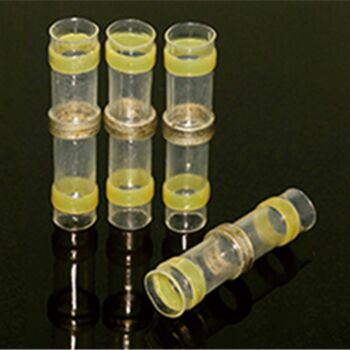

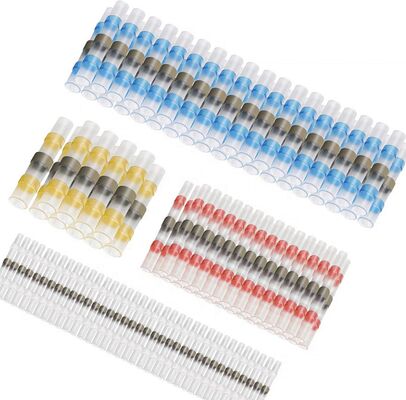

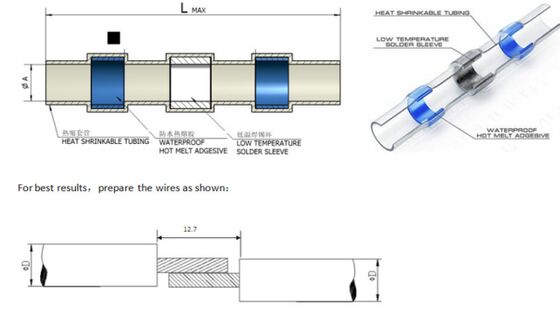

Heat Shrink Insulation Connectors Crystal clear, semi-rigid, adhesive lined tubing with integral solderless splice connector.
![]()
![]()
|
Property |
Test method |
Standard |
Typical Performance |
|
Tensile strength(MPa) |
ASTM D 2671 |
≥14 |
16 |
|
Elongation(%) |
ASTM D 2671 |
≥200 |
450 |
|
Tensile strength after aging(MPa) |
UL224 158℃*168hr |
≥7.3 |
15 |
|
Elongation after aging (%) |
UL224 158℃*168hr |
≥100 |
350 |
|
Dielectric strength(kV/mm) |
IEC 60243 |
≥15 |
17.5 |
|
Volume resistivity(Ω.cm) |
IEC 60093 |
≥1*1014 |
2.5*1014 |
|
Property |
Test method |
Standard Performance |
|
Water Absorption |
ASTM D 570 |
<0.5% |
|
Softening Point(℃) |
ASTM E28 |
95±5 |
|
Strength of pearing (PE) |
ASTM D 1000 |
120N/25mm |
|
Strength of pearing (AL) |
ASTM D 1000 |
80N/25mm |
Specification Table
|
Code |
Size |
Tube Diameter |
Color |
Standard Package |
|||
|
AWG |
MM2 |
Expanded Min(mm) |
REecovered Maxmm) |
Length(mm) |
|||
|
SBRS-DZ-1 |
22-18 |
0.5-1.0 |
3.8 |
1.7 |
35.0 |
RED |
1000pc/bag |
|
SBRS-DZ-2 |
16-14 |
1.5-2.5 |
4.8 |
2.4 |
35.0 |
BLUE |
1000pc/bag |
|
SBRS-DZ-3 |
12-10 |
4.0-6.0 |
5.7 |
3.6 |
42.0 |
YELLOW |
500pc/bag |
![]()
![]()
