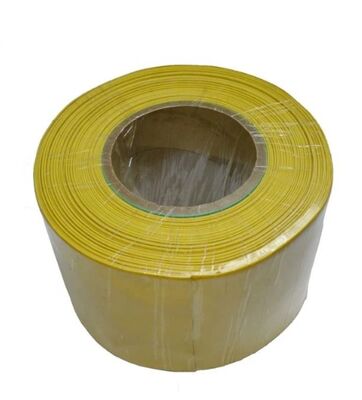

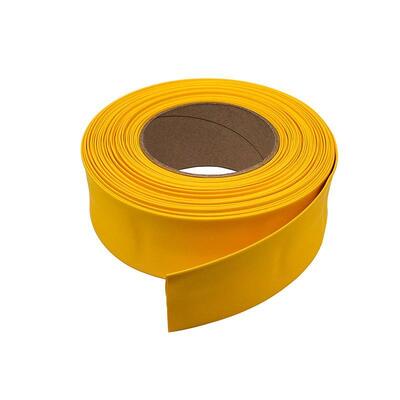

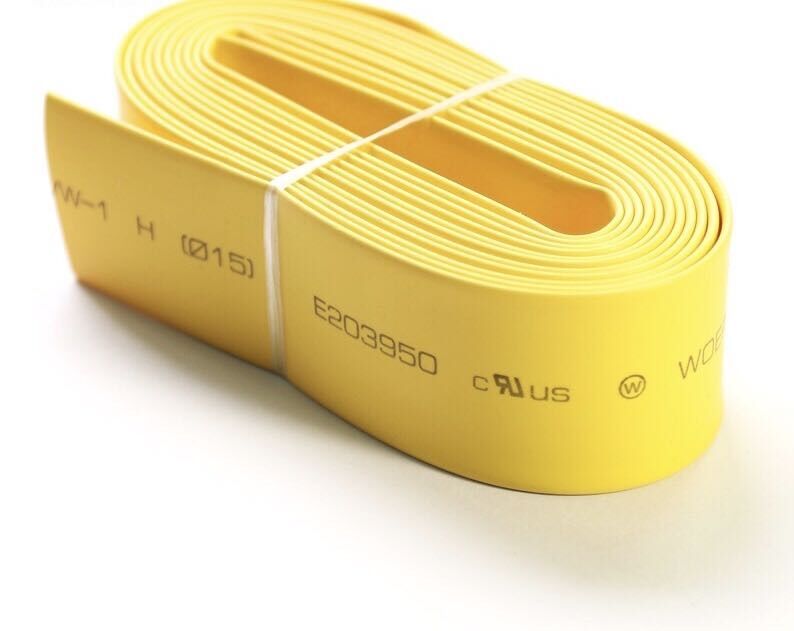

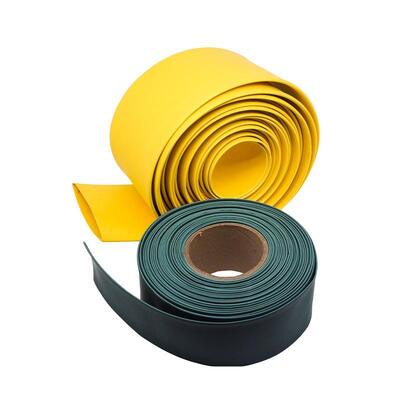

115mm Diameter Busbar Enclosure Featuring Moulding Processing Service Providing Electrical Circuit Protection

Product Description:

The Busbar Tube is an advanced protective solution designed specifically for busbar applications, providing exceptional busbar shielding, busbar protection, and busbar insulating properties. Engineered to meet stringent industrial requirements, this product ensures the safety, reliability, and longevity of electrical busbar systems across various sectors. With a pressure range of 0.2 to 0.6 MPa, the Busbar Tube is robust enough to withstand moderate mechanical stresses while maintaining optimal performance in demanding environments.

One of the key features of this Busbar Tube is its impressive operating temperature range, which spans from -40°C to 125°C. This wide temperature tolerance allows it to perform reliably in both extremely cold and hot conditions, making it suitable for use in diverse climatic zones and industrial settings. Whether installed in outdoor electrical cabinets or enclosed indoor systems, the Busbar Tube ensures consistent protection and insulation without degradation due to temperature fluctuations.

The product undergoes precise processing services such as moulding and cutting, which enable customization to fit various busbar sizes and configurations. Moulding allows for the creation of seamless, tailor-made tubes that conform perfectly to the shape and dimensions of the busbar, enhancing the effectiveness of busbar shielding. Cutting services facilitate the production of Busbar Tubes in specific lengths, simplifying installation and reducing material waste. These processing options offer flexibility and efficiency for manufacturers and installers alike.

Safety is paramount in electrical applications, and the Busbar Tube is designed with flame retardant materials to enhance fire safety. The flame retardant property significantly reduces the risk of fire propagation along the busbar, providing an additional layer of protection in case of electrical faults or overheating. This feature is critical for safeguarding equipment, property, and personnel from fire hazards, ensuring compliance with safety regulations and standards.

In terms of mechanical strength, the Busbar Tube boasts a tensile strength of at least 8.0 MPa. This high tensile strength indicates its durability and resistance to mechanical stress, which is essential for maintaining the integrity of the busbar insulation under various operational conditions. The robust construction prevents cracking, tearing, or deformation, which could otherwise compromise busbar protection and lead to electrical failures or hazards.

Overall, the Busbar Tube excels in providing comprehensive busbar shielding by effectively encasing the conductive components and shielding them from external contaminants such as dust, moisture, and chemical exposure. This shielding capability helps to prevent corrosion and electrical shorts, thereby extending the life of the busbar system.

Additionally, the Busbar Tube enhances busbar protection by offering a physical barrier that guards against accidental contact, mechanical damage, and environmental influences. This protection is critical for maintenance personnel and equipment safety, reducing the risk of electrical shock and improving overall workplace safety.

Furthermore, the busbar insulating properties of the tube ensure electrical isolation between busbars and other conductive parts. This insulation minimizes the risk of short circuits and electrical faults, promoting stable and efficient power distribution. The Busbar Tube’s insulation capabilities contribute significantly to the reliability and safety of electrical systems.

In conclusion, the Busbar Tube is a high-performance product that integrates superior busbar shielding, busbar protection, and busbar insulating features. Its wide pressure and temperature operating ranges, combined with flame retardant materials and high tensile strength, make it an ideal choice for protecting busbar systems in a variety of industrial and commercial applications. Whether for new installations or maintenance upgrades, this Busbar Tube ensures enhanced safety, durability, and operational efficiency.

Features:

• Product Name: Busbar Tube
• Surface Finish: Tin Plated for enhanced corrosion resistance
• Flame Retardant material for improved safety
• Rated Voltage: 1kV suitable for various electrical applications
• Pressure Range: 0.2~0.6MPa ensuring reliable performance
• Ideal for Electrical Distribution and Switchgear systems
• Provides excellent Busbar Insulating properties
• Offers effective Busbar Protective coverage
• Designed for superior Busbar Protection in electrical installations

Technical Parameters:

Applications:

The WOER Busbar Tube, available in model numbers ranging from 15mm to 200mm, is a high-quality electrical component designed for a wide range of application occasions and scenarios. Manufactured in China and certified under ISO9001 standards, this product ensures reliability and superior performance in critical electrical distribution and switchgear systems. With a diameter of 85mm and a tin-plated surface finish, the WOER Busbar Tubing offers excellent conductivity and corrosion resistance, making it ideal for various industrial and commercial electrical installations.

One of the primary application occasions for WOER Busbar Tubing is in electrical distribution networks, where efficient power transmission and safety are paramount. The busbar tubing’s flame retardant and insulated properties provide enhanced protection against electrical faults and fire hazards, which is crucial in environments requiring stringent safety measures. Whether in power plants, substations, or large commercial buildings, this busbar tubing ensures stable and secure electrical connections.

In switchgear applications, WOER Busbar Tubing is extensively utilized to connect various electrical components and ensure seamless operation of control and protection devices. The insulation and busbar insulation features minimize the risk of short circuits and electrical leakage, enhancing the overall system's reliability. The busbar tubing’s insulation also simplifies installation and maintenance, reducing downtime and improving safety for electrical engineers and technicians.

The product’s packaging in cartons and a minimum order quantity of just 1 meter makes it convenient for both large-scale projects and smaller maintenance tasks. With a supply ability of 100,000 meters per day and a delivery time of 2-4 days, WOER can efficiently meet urgent and bulk order demands. Pricing is negotiable, and payment terms require TT in advance, ensuring a smooth and secure transaction process for customers worldwide.

Overall, WOER Busbar Tubing is perfectly suited for applications that demand durability, safety, and efficiency. Its flame retardant, insulated design and excellent surface finish make it an indispensable component in modern electrical distribution and switchgear systems. Whether upgrading existing systems or designing new installations, WOER Busbar Tubing and busbar insulation solutions offer unmatched quality and performance.
